KEFG微型高精度内孔轴向槽刀
KEFG-06F100-6210R
关键词：
切断/切槽刀片
涂层
所属分类：
切断/切槽刀片
咨询热线：
KEFG微型高精度内孔轴向槽刀
图文详情
柄部直径 | 订货编号 | 基本尺寸 | Φ(min) | 涂层材质 | ||||||
L | L1 | T | b | F | JF605M | JF610M | JF615M | |||
6 | KEFG-06F100-6210R | 32.5 | 10 | 1.5 | 1 | 2.95 | 6.2 | ◀ | ◀ | ◁ |
KEFG-06F100-6210 L | 32.5 | 10 | 1.5 | 1 | 2.95 | 6.2 | ◁ | ◁ | ◁ | |
KEFG-06F100-6215R | 37.5 | 15 | 1.5 | 1 | 2.95 | 6.2 | ◀ | ◀ | ◁ | |
KEFG-06F100-6215L | 37.5 | 15 | 1.5 | 1 | 2.95 | 6.2 | ◁ | ◁ | ◁ | |
KEFG-06F150-6210R | 32.5 | 10 | 2.3 | 1.5 | 2.95 | 6.2 | ◀ | ◀ | ◁ | |
KEFG-06F150-6210 L | 32.5 | 10 | 2.3 | 1.5 | 2.95 | 6.2 | ◁ | ◁ | ◁ | |
KEFG-06F150-6215R | 37.5 | 15 | 2.3 | 1.5 | 2.95 | 6.2 | ◀ | ◀ | ◁ | |
KEFG-06F150-6215L | 37.5 | 15 | 2.3 | 1.5 | 2.95 | 6.2 | ◁ | ◁ | ◁ | |
KEFG-06F200-6210R | 32.5 | 10 | 3 | 2 | 2.95 | 6.2 | ◀ | ◀ | ◁ | |
KEFG-06F200-6210 L | 32.5 | 10 | 3 | 2 | 2.95 | 6.2 | ◁ | ◁ | ◁ | |
KEFG-06F200-6215R | 37.5 | 15 | 3 | 2 | 2.95 | 6.2 | ◀ | ◀ | ◁ | |
KEFG-06F200-6215L | 37.5 | 15 | 3 | 2 | 2.95 | 6.2 | ◁ | ◁ | ◁ | |
7 | KEFG-07F100-7215R | 37.5 | 15 | 1.5 | 1 | 3.45 | 7.2 | ◀ | ◀ | ◁ |
KEFG-07F100-7215 L | 37.5 | 15 | 1.5 | 1 | 3.45 | 7.2 | ◁ | ◁ | ◁ | |
KEFG-07F100-7220 R | 42.5 | 20 | 1.5 | 1 | 3.45 | 7.2 | ◀ | ◀ | ◁ | |
KEFG-07F100-7220 L | 42.5 | 20 | 1.5 | 1 | 3.45 | 7.2 | ◁ | ◁ | ◁ | |
KEFG-07F150-7215R | 37.5 | 15 | 2.3 | 1.5 | 3.45 | 7.2 | ◀ | ◀ | ◁ | |
KEFG-07F150-7215 L | 37.5 | 15 | 2.3 | 1.5 | 3.45 | 7.2 | ◁ | ◁ | ◁ | |
KEFG-07F150-7220 R | 42.5 | 20 | 2.3 | 1.5 | 3.45 | 7.2 | ◀ | ◀ | ◁ | |
KEFG-07F150-7220 L | 42.5 | 20 | 2.3 | 1.5 | 3.45 | 7.2 | ◁ | ◁ | ◁ | |
KEFG-07F200-7215R | 37.5 | 15 | 3 | 2 | 3.45 | 7.2 | ◀ | ◀ | ◁ | |
KEFG-07F200-7215 L | 37.5 | 15 | 3 | 2 | 3.45 | 7.2 | ◁ | ◁ | ◁ | |
KEFG-07F200-7220R | 42.5 | 20 | 3 | 2 | 3.45 | 7.2 | ◀ | ◀ | ◁ | |
KEFG-07F200-7220 L | 42.5 | 20 | 3 | 2 | 3.45 | 7.2 | ◁ | ◁ | ◁ | |
8 | KEFG-08F150-8220R | 47.5 | 20 | 2.3 | 1.5 | 3.95 | 8.2 | ◀ | ◀ | ◁ |
KEFG-08F150-8220 L | 47.5 | 20 | 2.3 | 1.5 | 3.95 | 8.2 | ◁ | ◁ | ◁ | |
KEFG-08F150-8225R | 52.5 | 25 | 2.3 | 1.5 | 3.95 | 8.2 | ◀ | ◀ | ◁ | |
KEFG-08F150-8225L | 52.5 | 25 | 2.3 | 1.5 | 3.95 | 8.2 | ◁ | ◁ | ◁ | |
KEFG-08F200-8220R | 47.5 | 20 | 3 | 2 | 3.95 | 8.2 | ◀ | ◀ | ◁ | |
KEFG-08F200-8220 L | 47.5 | 20 | 3 | 2 | 3.95 | 8.2 | ◁ | ◁ | ◁ | |
KEFG-08F200-8225R | 52.5 | 25 | 3 | 2 | 3.95 | 8.2 | ◀ | ◀ | ◁ | |
KEFG-08F200-8225L | 52.5 | 25 | 3 | 2 | 3.95 | 8.2 | ◁ | ◁ | ◁ | |

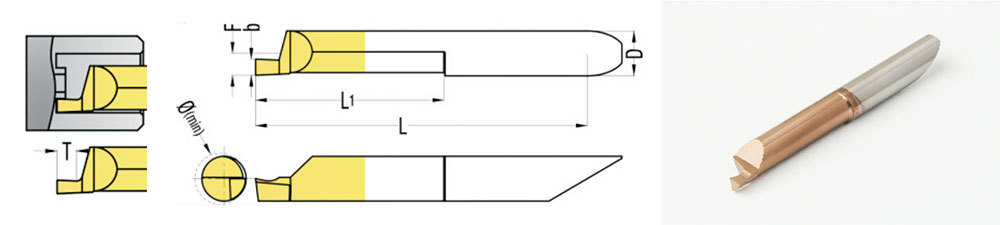

图示：右手刀 订货示例：KEFG-06F100-6210R JF610M ◀ 常备库存 ◁ 不常备库存 | ||||||||||
