合金刀杆
图文详情
1、使用全合金材质制成，刚性优异，吸震性佳，不会因横向径力过大，而扭曲变形。
2、延长加工深度，提升加工面精度，实现超长超高精度加工之可行性。
3、没有焊接断裂之疑虑，强调刀头多变化性，即使刀头断裂，立即更换即可上线。

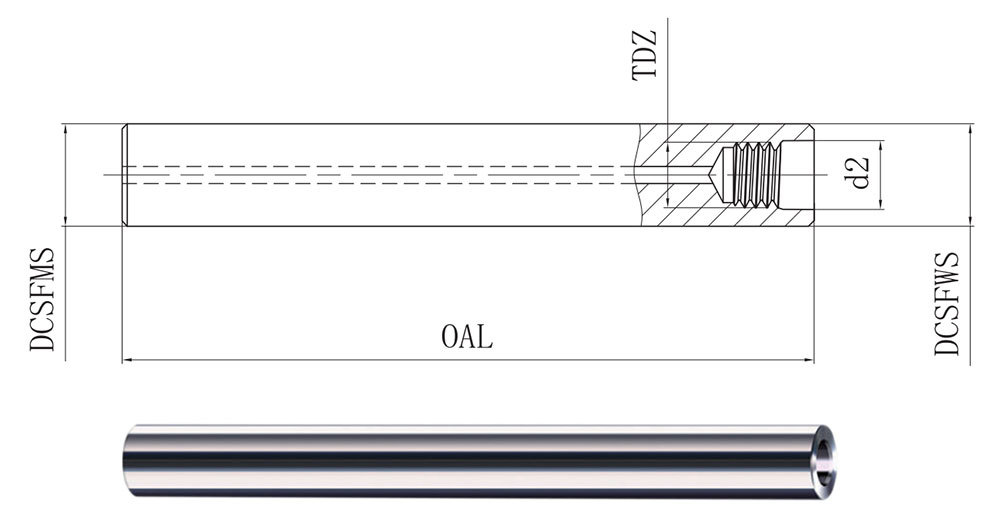

型 号 | 外形尺寸 | ||||
DCSFWS | TDZ | d2 | OAL | DCSFMS | |
XCH16-100-M8 | 16 | M8 | 8.5 | 100 | 16 |
XCH16-150-M8 | 16 | M8 | 8.5 | 150 | 16 |
XCH16-200-M8 | 16 | M8 | 8.5 | 200 | 16 |
XCH16-250-M8 | 16 | M8 | 8.5 | 250 | 16 |
XCH20-100-M10 | 20 | M10 | 10.5 | 100 | 20 |
XCH20-150-M10 | 20 | M10 | 10.5 | 150 | 20 |
XCH20-200-M10 | 20 | M10 | 10.5 | 200 | 20 |
XCH20-250-M10 | 20 | M10 | 10.5 | 250 | 20 |
XCH25-100-M12 | 25 | M12 | 12.5 | 100 | 25 |
XCH25-150-M12 | 25 | M12 | 12.5 | 150 | 25 |
XCH25-200-M12 | 25 | M12 | 12.5 | 200 | 25 |
XCH25-250-M12 | 25 | M12 | 12.5 | 250 | 25 |
XCH25-300-M12 | 25 | M12 | 12.5 | 300 | 25 |
XCH25-350-M12 | 25 | M12 | 12.5 | 350 | 25 |
XCH32-100-M16 | 32 | M16 | 16.5 | 100 | 32 |
XCH32-150-M16 | 32 | M16 | 16.5 | 150 | 32 |
XCH32-200-M16 | 32 | M16 | 16.5 | 200 | 32 |
XCH32-250-M16 | 32 | M16 | 16.5 | 250 | 32 |
XCH32-300-M16 | 32 | M16 | 16.5 | 300 | 32 |
XCH32-350-M16 | 32 | M16 | 16.5 | 350 | 32 |
