五齿不过心铣刀S5GS圆角系列
主要用于钛合金、高温合金，沉淀硬化不锈钢等难加工材料的粗加工及精加工。
关键词：
钛合金
不锈钢
所属分类：
整体式合金立铣刀
咨询热线：
五齿不过心铣刀S5GS圆角系列
图文详情
5齿U型设计，底齿不过中心，更大限度的增加了容屑空间。避免了底齿中心切削速度低易崩齿的现象!加工合金(Tc4/Tc18/Tc21)锻造高温合金(GH4169)沉淀硬化不锈钢(17-4PH/15-5PH)的利器。
刀具梁用混晶合金材料，在保证刀具高耐磨性的同时又保证刀具强度!采用巴尔查斯专业防粘结涂层，具有较低的摩擦系数，让铁屑迅速流走，带走切削热。独特的槽型设计，使刀具拥有最大的容屑空间以上设计，有效的防止了粘刀现象在镍基高温合金(GH4169)软磁合金(1J50/1J79等)的铣削加工上，效果非凡。

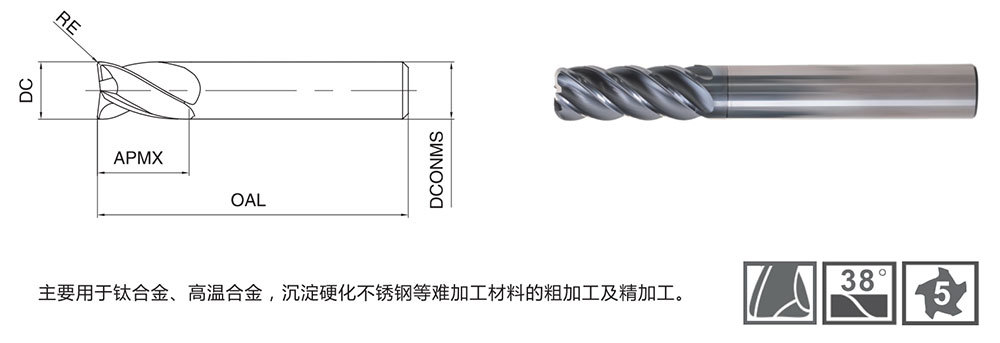

型 号 | 基本尺寸 | 材质 | ||||||||
DC | DCONMS | APMX | OAL | RE | Z | JF510M | JF515M | JF520M | JF530M | |
S5GS0615050R050 | 6 | 9 | 15 | 50 | 0.5 | 5 | O | O | ● | ● |
55GS0615050R100 | 6 | 6 | 15 | 50 | 1 | 5 | O | O | ● | ● |
S5GS0615050R150 | 6 | 9 | 15 | 50 | 1.5 | 5 | O | O | ● | ● |
S5GS0820060R050 | 8 | 8 | 20 | 60 | 0.5 | 5 | O | O | ● | ● |
55GS0820060R100 | 8 | 8 | 20 | 60 | 1 | 5 | O | O | ● | ● |
S5GS0820060R150 | 8 | 8 | 20 | 60 | 1.5 | 5 | O | O | ● | ● |
S5GS0820060R200 | 8 | 8 | 20 | 60 | 2 | 5 | O | O | ● | ● |
55GS1025075R050 | 10 | 10 | 25 | 75 | 0.5 | 5 | O | O | ● | ● |
S5GS1025075R100 | 10 | 10 | 25 | 75 | 1 | 5 | O | O | ● | ● |
S5GS1025075R150 | 10 | 10 | 25 | 75 | 1.5 | 5 | O | O | ● | ● |
55GS1025075R200 | 10 | 10 | 25 | 75 | 2 | 5 | O | O | ● | ● |
S5GS1025075R300 | 10 | 10 | 25 | 75 | 3 | 5 | O | O | ● | ● |
S5GS1230075R050 | 12 | 12 | 30 | 75 | 0.5 | 5 | O | O | ● | ● |
S5GS1230075R100 | 12 | 12 | 30 | 75 | 1 | 5 | O | O | ● | ● |
S5GS1230075R150 | 12 | 12 | 30 | 75 | 1.5 | 5 | O | O | ● | ● |
S5GS1230075R200 | 12 | 12 | 30 | 75 | 2 | 5 | O | O | ● | ● |
S5GS1230075R300 | 12 | 12 | 30 | 75 | 3 | 5 | O | O | ● | ● |
S5GS1640100R050 | 16 | 16 | 40 | 100 | 0.5 | 5 | O | O | ● | ● |
S5GS1640100R100 | 16 | 16 | 40 | 100 | 1 | 5 | O | O | ● | ● |
S5GS1640100R200 | 16 | 16 | 40 | 100 | 2 | 5 | O | O | ● | ● |
S5GS1640100R300 | 16 | 16 | 40 | 100 | 3 | 5 | O | O | ● | ● |
S5GS1640100R400 | 16 | 16 | 40 | 100 | 4 | 5 | O | O | ● | ● |
S5GS2040100R050 | 20 | 20 | 40 | 100 | 0.5 | 5 | O | O | ● | ● |
S5GS2040100R100 | 20 | 20 | 40 | 100 | 1 | 5 | O | O | ● | ● |
S5GS2040100R200 | 20 | 20 | 40 | 100 | 2 | 5 | O | O | ● | ● |
S5GS2040100R300 | 20 | 20 | 40 | 100 | 3 | 5 | O | O | ● | ● |
S5GS2040100R400 | 20 | 20 | 40 | 100 | 4 | 5 | O | O | ● | ● |
55GS2040100R500 | 20 | 20 | 40 | 100 | 5 | 5 | O | O | ● | ● |
● 标准库存 ○ 需预定
| DC | 公差 | DCONMS | ||||||||||
≤12 | 0 | h6 | |||||||||||
|
>12
| 0 |
| ||||||||||
被加工材料 | |||||||||||||
碳素钢 | 工具钢 | 预硬钢、淬硬钢 | 不锈钢 | 铸铁 | 铜合金 | 钛合金 | 耐热合金 | ||||||
~40HRC | ~50HRC | ~55HRC | ~60HRC | ◎ | O | ||||||||
O | O | O | O |
|
|
| ◎ | ◎ | |||||
订货示例：S5GS1640100R100 JF520M ◎ 最适合 O 适合
